> R915C01TM

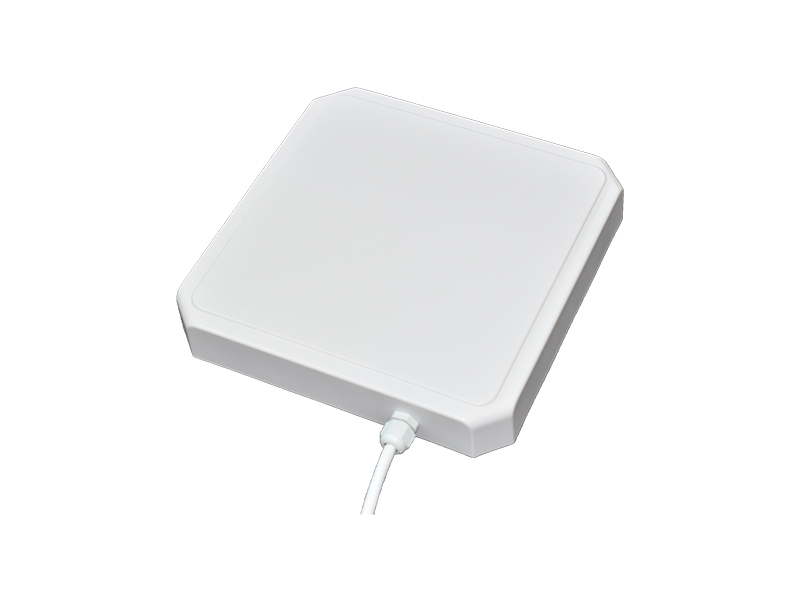

Product Name:R915C01TM
Product introduction：NRP-R915C01TM is a UHF integrated reader, modular design, strong waterproof. It supports EPC Gen2 protocol, temperature measurement labels, and is used for parking management, reagents and drugs in and out of storage and
product details
| Basic Information | |
| Brand | Enruipu |
| Place of Origin | Shenzhen |
| Card / Tag type | UHF 6C |
| Reading distance | 15m |
| Power supply | 12W |
| Frequency | 902~928MHz |
| Tag reading speed | 2ms |
| Main market | |
| Product type | UHF Intergrated reader |
| Model | NRP-R915C01TM |
| Specification | |||
| Model | NRP-R915C01TM | ||
| Protocol | ISO-18000 6C, Support UHF temperature measurement label | ||
| Frequency | 902~928MHz or 865~868MHz | ||
| Working mode | FHSS or Fixed | ||
| RF output | 0~30dBm | ||
| Multi-card | >350 tags/second | ||
| Reading speed | 2ms | ||
| Reading mode | Single, continuous, trigger, software control .etc | ||
| Reading distance | 12m，8dBi gain antenna | ||
| Reading prompt | LED light or buzzer | ||
| Interface | Serial port, Wiegand, Ethernet port, WiFi, 4G | ||
| Antenna type | Built-in linear polarized antenna, 8dBi gain | ||
| Power supply | DC +12V | ||
| Size | 258*258*90mm | ||
| Packing size | 300*260*100mm | ||
| Net weight | 1.6kg | ||
| Gross weight | 2.1kg | ||
| Working TEMP | -20℃ ~ +80℃ | ||
| Storage TEMP | -30℃ ~ +85℃ | ||
| Interface definition | ||
| 01 | Red | DC 0~12V positive of power supply |
| 02 | Yellow | 0V negative of power supply |
| 03 | Gray | Enabled, short-circuited with Black, reader works |
| 04 | Blue | Wiegand data cable 1 |
| 05 | Green | Wiegand data cable 0 |
| 06 | Black | 0V signal ground |
| 07 | Brown | RS232 TXD |
| 08 | White | RS232 RXD |
| 09 | Purple | NC1 normally open relay 1 |
| 10 | Orange | COM1 common relay 1 |
| 11 | Light blue | NC2 normally open relay 2 |
| 12 | Pink | COM2 common relay 2 |
| 13 | Light green | RS485-B |
| 14 | Light brown | RS485-A |
