> UHF Desktop Reader(TCP/IP)

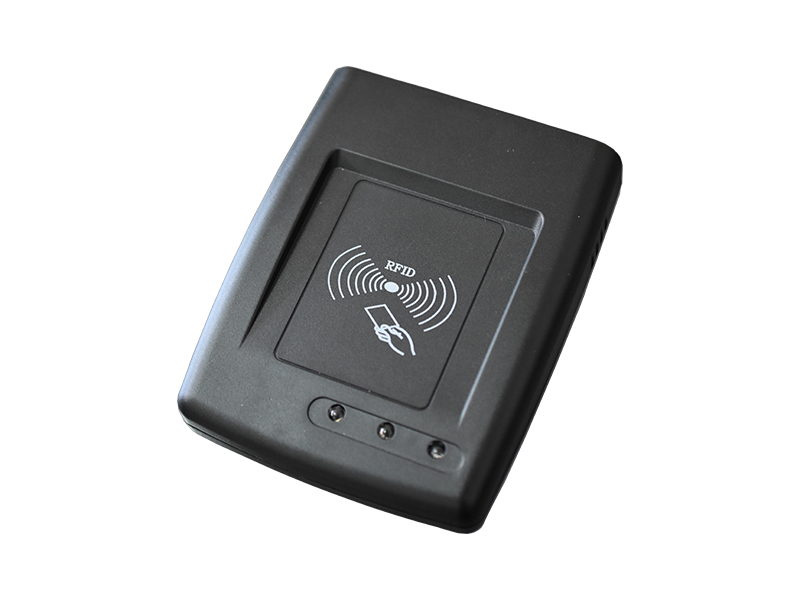

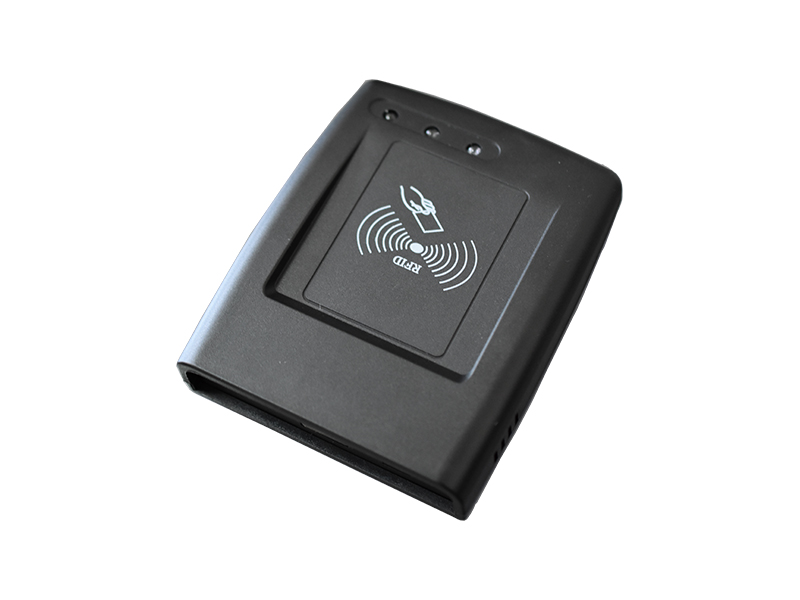

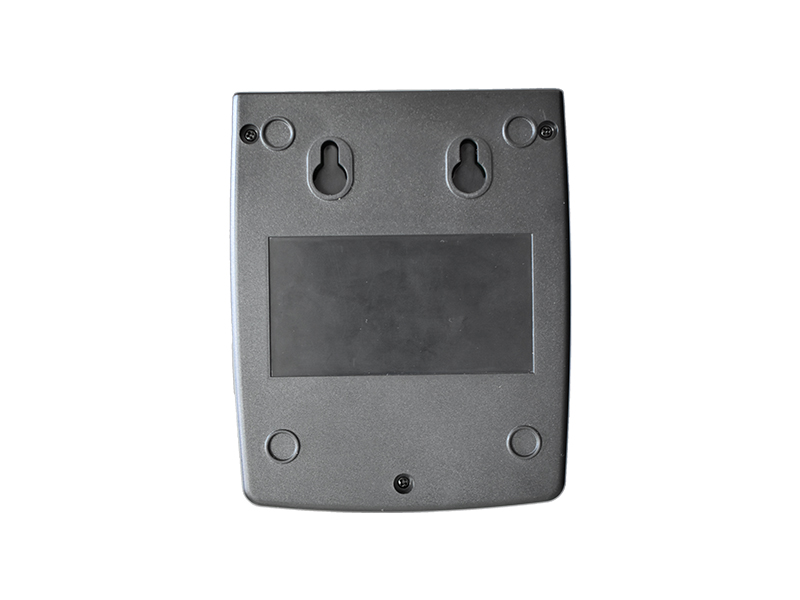

Product Name:UHF Desktop Reader(TCP/IP)
Product introduction：UHF desktop reader, used for personnel management, card issuance, authority management, etc. Reading and writing data is sensitive and reliable.
product details
| Features | |
| 1 | Built-in high-performance micro-module, stable and reliable work |
| 2 | External 9V power adapter power supply, can be customized POE power supply |
| 3 | Typical card reading distance 30~50cm |
| 4 | Support USB2.0/RS232 |
| Electrical parameters | |
| Working voltage | DC 3.5V~5V/9V |
| Standby current | ＜80mA |
| Working current | 150mA@5V（26dBm Output，25℃） |
| Working TEMP | -20℃ ~ +70℃ |
| Storage TEMP | -20℃ ~ +85℃ |
| Working humidity | ＜95%（25℃） |
| Air Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Frequency | 902MHz~928MHz，865MHz~868MHz，adjustable |
| Main market | United States, Canada, Europe, China, South Korea, Malaysia, etc. |
| RF Output | 15~26dBm |
| RF accuracy | ±1dB |
| RF flatness | ±0.2dB |
| Sensitivity | ＜-70dBm |
| Inventory speed | ＜50 tags/sec |
| Tag cache | Support |

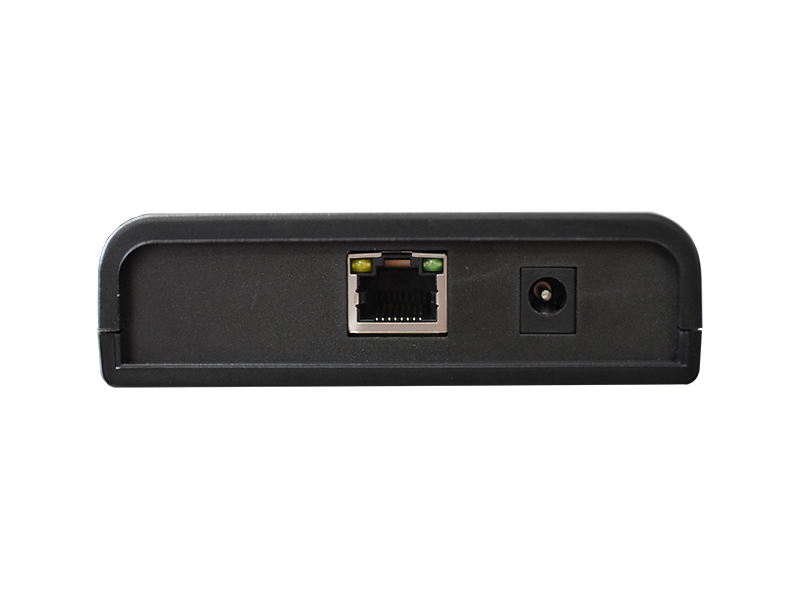

| Interface | TCP/IP, RJ45 network port |
| Baud rate | 9600 bps |
| Cooling | Air |
| Physical parameter | |
| Antenna | 3dBi circular polarization antenna |
| Development | Java kit, Demo |
| Size | 135mm*97mm*31mm |
| Weight | 200g |
| Material | ABS |
